UCPH207 Pillow Block Bearings

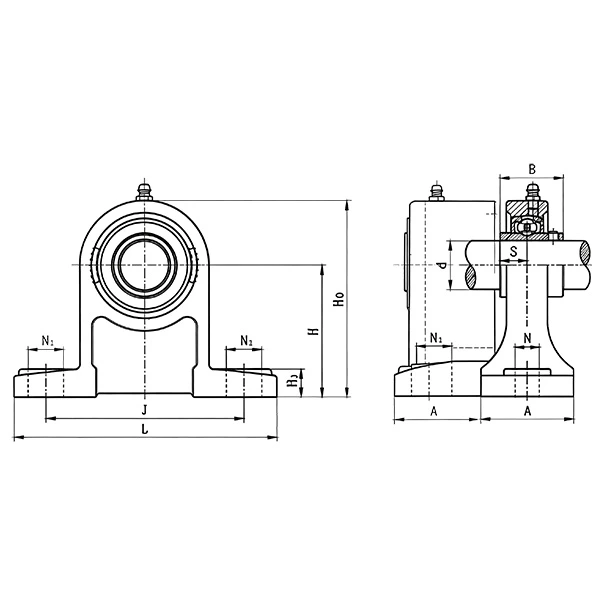

| UCPH207 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCPH207 | H2 | 19 |
| d | 35 | A | 60 |
| B | 42.9 | N | 17 |
| S | 17.5 | N1 | 21 |
| L | 167 | Install the bolt | M14 |
| J | 127 | Dynamic Load Co(N) | 25500 |
| H | 95 | Static Load Cor(N) | 15300 |
| H0 | 140 | Weight(Kg) | 2.4 |
UCPH207 Bearing | 35mm Bore High Pillow Block Mounted Bearing
The UCPH207 high pillow block bearing is a high-base mounted bearing unit with a 35mm bore. Featuring a self-aligning UC insert and dual set screw locking design, this bearing delivers stable low-noise rotation and low-maintenance performance, ideal for medium-duty industrial machinery requiring elevated mounting height.
Product Material And Housing Difference
Bearing Core: Manufactured from high-quality GCr15 bearing steel with precision heat treatment. It provides high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation.

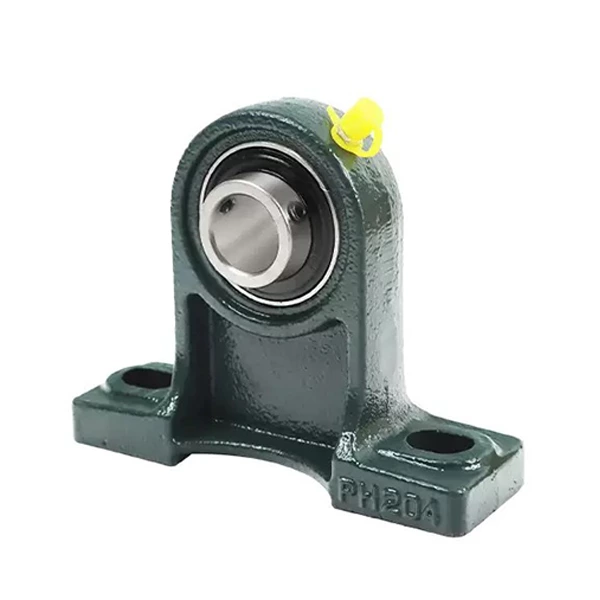

Cast Iron Housing: HT200 grey cast iron high-base housing offers high rigidity and strong shock resistance. Cost-effective and durable, it is suitable for dry, indoor and conventional standard industrial environments.

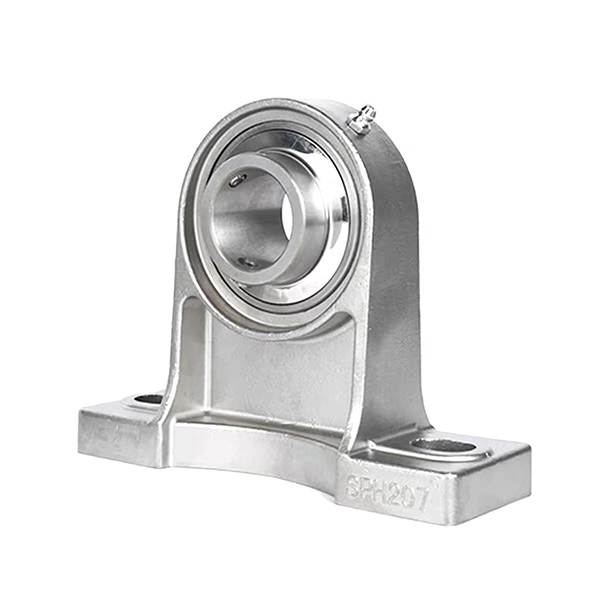

Stainless Steel Housing: Premium stainless steel housing features outstanding rust-proof, anti-corrosion and moisture-resistant properties. It performs reliably in humid, wet and sanitary working conditions, perfect for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Professional high-base structure meets special height installation demands. Built-in self-aligning function compensates for minor shaft misalignment and mounting deviation. Dual set screw locking effectively prevents shaft slipping and loosening during continuous operation. Simple modular structure enables fast installation and replacement. Effective sealing resists dust and moisture ingress to extend bearing service life.
Application Scenarios
UCPH207 high pillow block bearings are widely applied in medium-duty conveyor systems, textile machinery, packaging equipment and industrial automation devices. Cast iron housing fits standard dry indoor working conditions, while stainless steel housing is optimized for sanitary, humid and corrosive industrial applications.
