UCPH208 Pillow Block Bearings

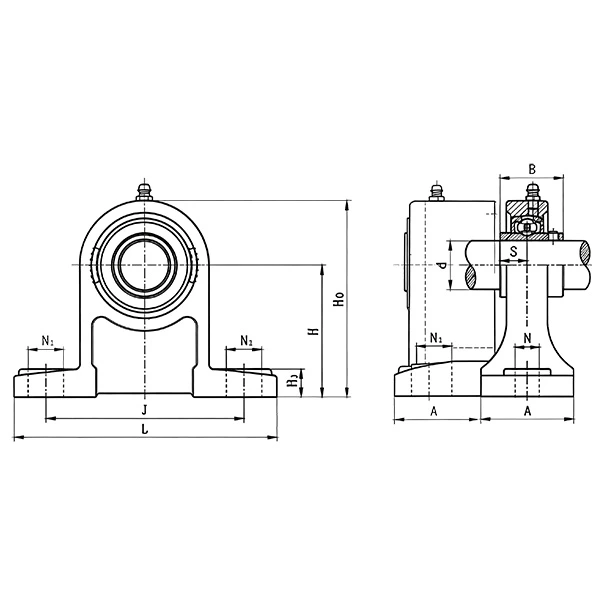

| UCPH208 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCPH208 | H2 | 19 |
| d | 40 | A | 70 |
| B | 49.2 | N | 17 |
| S | 19 | N1 | 25 |
| L | 184 | Install the bolt | M14 |
| J | 137 | Dynamic Load Co(N) | 32500 |
| H | 100 | Static Load Cor(N) | 20000 |
| H0 | 149 | Weight(Kg) | 2.4 |
UCPH208 Bearing | 40mm Bore High Pillow Block Mounted Bearing
The UCPH208 high pillow block bearing is a high-base mounted bearing unit with a 40mm bore. Equipped with a self-aligning UC insert and dual set screw locking design, this UCPH208 bearing provides stable low-noise rotation and low-maintenance operation, ideal for medium-duty industrial machinery requiring elevated mounting height.
Product Material And Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It delivers high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation.

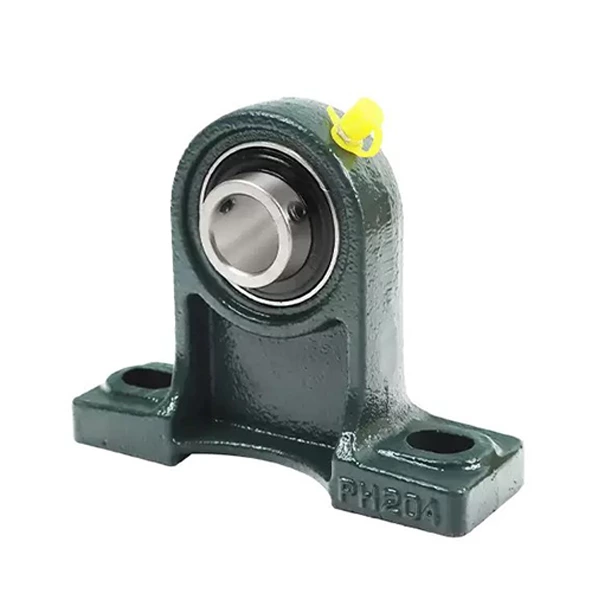

Cast Iron Housing: HT200 grey cast iron high-base housing features high rigidity and strong shock resistance. Cost-effective and durable, it is suitable for dry, indoor and conventional standard industrial environments.

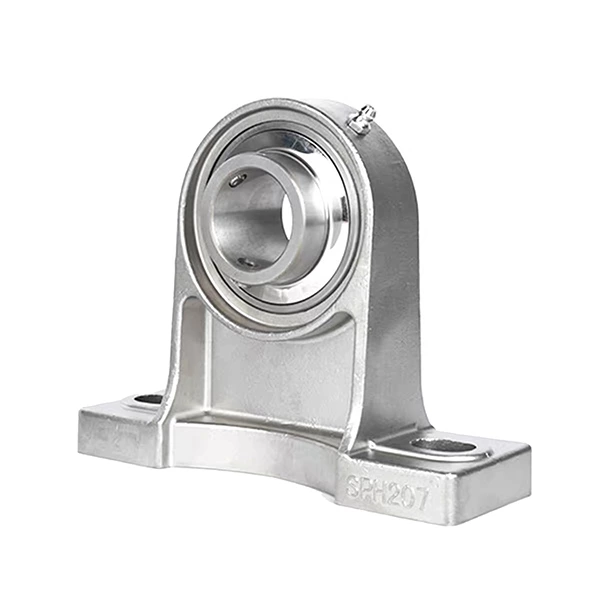

Stainless Steel Housing: Premium stainless steel housing offers superior rust-proof, anti-corrosion and moisture-resistant performance. It works reliably in humid, wet and sanitary conditions, perfect for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Special high-base structure meets customized height installation requirements. Built-in self-aligning function compensates for minor shaft misalignment and mounting deviation. Dual set screw locking effectively prevents shaft slipping and loosening during continuous operation. Modular design allows fast installation and replacement. High-performance sealing resists dust and moisture ingress to extend bearing service life.
Application Scenarios
UCPH208 high pillow block bearings are widely used in medium-duty conveyor systems, textile machinery, packaging equipment and industrial automation devices. Cast iron housing adapts to standard dry indoor working conditions, while stainless steel housing is optimized for sanitary, humid and corrosive industrial applications.
