UCPH210 Pillow Block Bearings

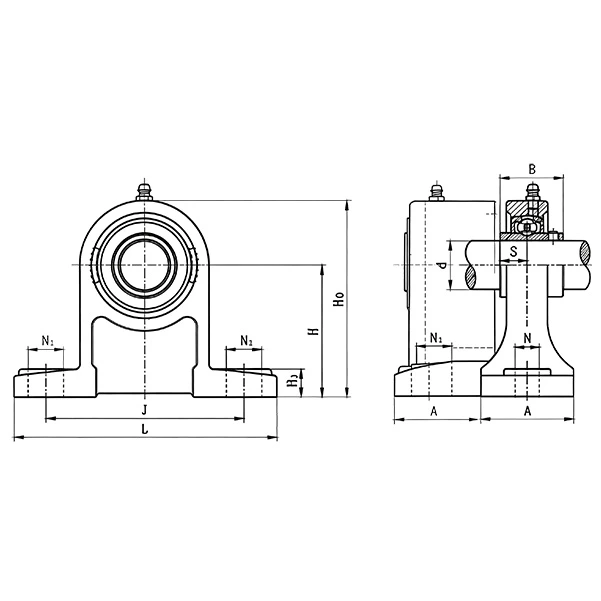

| UCPH210 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCPH210 | H2 | 22 |
| d | 50 | A | 70 |
| B | 51.6 | N | 20 |
| S | 19 | N1 | 25 |
| L | 206 | Install the bolt | M16 |
| J | 159 | Dynamic Load Co(N) | 35100 |
| H | 110 | Static Load Cor(N) | 23200 |
| H0 | 165 | Weight(Kg) | 4.1 |
UCPH210 Bearing | 50mm Bore High Pillow Block Mounted Bearing
The UCPH210 high pillow block bearing is a high-base mounted bearing unit with a 50mm bore. Adopting a self-aligning UC insert and dual set screw locking design, this bearing delivers stable low-noise operation and low-maintenance performance, ideal for medium and heavy-duty industrial machinery requiring elevated mounting height.
Product Material And Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It provides high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation under heavy loads.

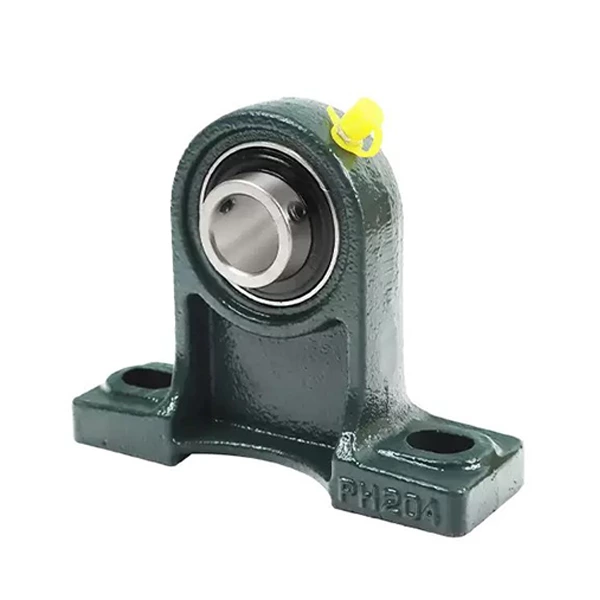

Cast Iron Housing: HT200 grey cast iron high-base housing boasts high rigidity and strong shock resistance. Cost-effective and robust, it is suitable for dry, indoor and conventional standard industrial working environments.

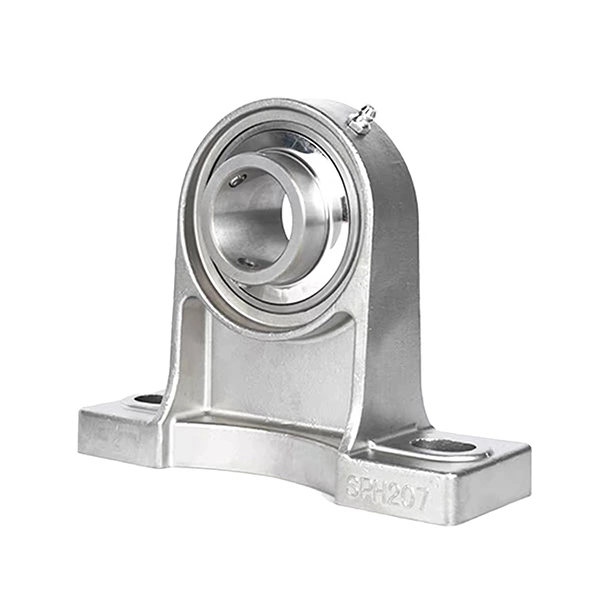

Stainless Steel Housing: Premium stainless steel housing offers superior rust-proof, anti-corrosion and moisture-resistant performance. It works steadily in humid, wet and sanitary conditions, perfectly suited for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Sturdy high-base structure meets elevated height installation requirements for heavy-load equipment. Built-in self-aligning function compensates for minor shaft misalignment and mounting deviation. Dual set screw locking effectively prevents shaft slipping and loosening during long-term continuous operation. Modular design supports quick installation and replacement. Reliable sealing structure blocks dust and moisture ingress to extend bearing service life.
Application Scenarios
UCPH210 high pillow block bearings are widely used in heavy-duty conveyor systems, large textile machinery, packaging equipment and industrial automation production lines. Cast iron housing adapts to standard dry indoor working conditions, while stainless steel housing is optimized for sanitary, humid and corrosive industrial applications.
