UCPH211 Pillow Block Bearings

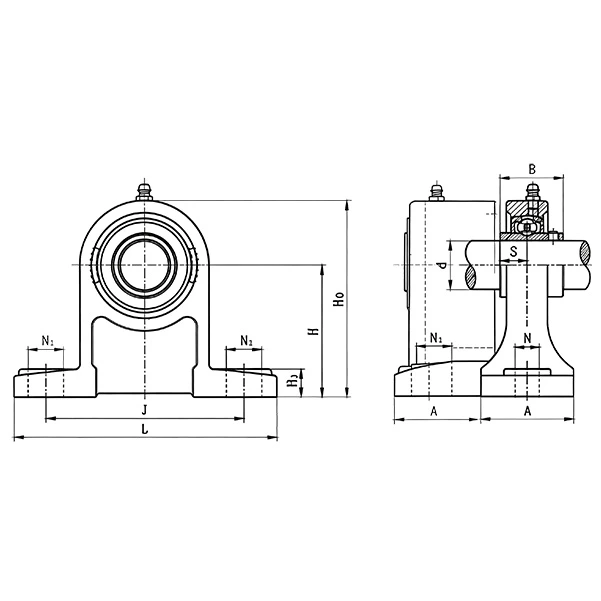

| UCPH211 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCPH211 | H2 | 23 |
| d | 55 | A | 75 |
| B | 55.6 | N | 20 |
| S | 22.2 | N1 | 23 |
| L | 219 | Install the bolt | M16 |
| J | 171 | Dynamic Load Co(N) | 43400 |
| H | 120 | Static Load Cor(N) | 29400 |
| H0 | 181 | Weight(Kg) | 4.2 |
UCPH211 Bearing | 55mm Bore High Pillow Block Mounted Bearing
The UCPH211 high pillow block bearing is a heavy-duty high-base mounted bearing unit with a 55mm bore. Equipped with a self-aligning UC bearing insert and dual set screw locking structure, it features stable low-noise operation and low maintenance, ideal for medium and heavy-duty industrial machinery that requires elevated mounting height.
Product Material And Housing Difference
Bearing Core: Constructed from high-quality GCr15 bearing steel with precision heat treatment. It delivers high hardness, strong wear resistance and stable mechanical performance for long-term continuous heavy-load operation.

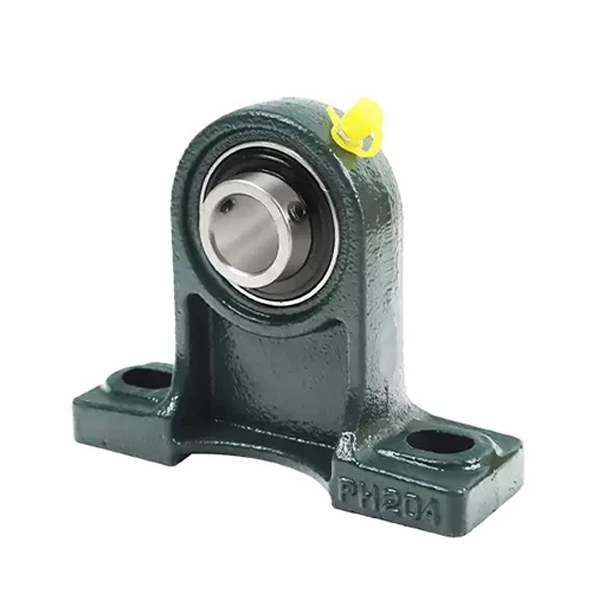

Cast Iron Housing: HT200 grey cast iron high-base housing provides high structural rigidity and excellent shock resistance. Cost-effective and durable, it is applicable to dry, indoor and conventional standard industrial environments.

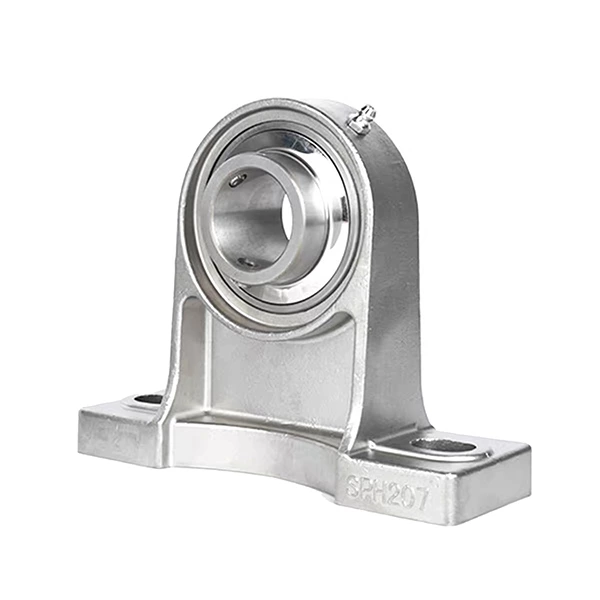

Stainless Steel Housing: High-grade stainless steel housing offers outstanding rust-proof, anti-corrosion and waterproof properties. It operates reliably in humid, wet and sanitary working conditions, suitable for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Reinforced high-base structure meets elevated height installation standards for heavy-load equipment. Built-in self-aligning design compensates for minor shaft misalignment and mounting deviation. Dual set screw locking avoids shaft slipping and loosening during continuous operation. Standard modular design enables fast installation and replacement. Premium sealing effectively resists dust and moisture to prolong bearing service life.
Application Scenarios
UCPH211 high pillow block bearings are widely used in heavy-duty conveyor systems, large textile machinery, industrial packaging equipment and automated production lines. Cast iron housing fits regular dry indoor working conditions, while stainless steel housing is optimized for sanitary, humid and corrosive industrial applications.
