UCT202 Pillow Block Bearings

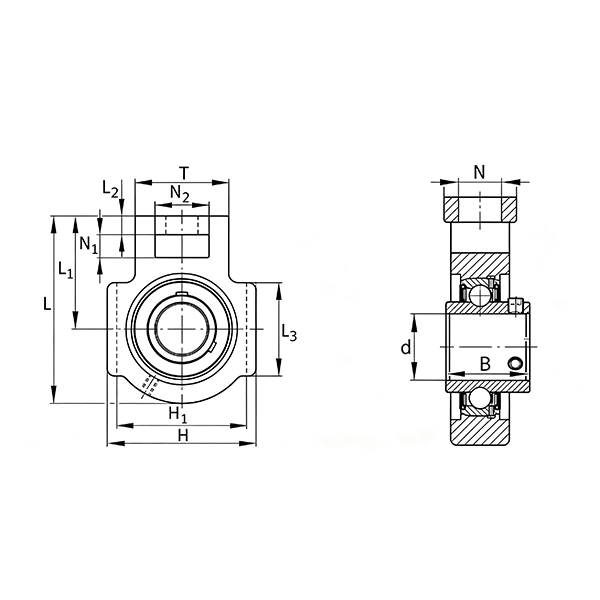

| UCT202 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCT202 | L3 | 51 |
| d | 15 | T | 32 |
| B | 31 | L2 | 10 |
| H | 89 | Install the bolt | M10 |
| L | 94 | Dynamic Load Co(N) | 12800 |
| H1 | 76 | Static Load Cor(N) | 6650 |
| N | 19 | Weight(Kg) | 0.75 |
| L1 | 61 | ||
UCT202 Take-Up Bearing | 15mm Bore Sliding Mounted Bearing
The UCT202 take-up bearing is a lightweight sliding mounted bearing unit with a 15mm bore. Designed with a self-aligning UC insert, dual set screw locking and adjustable take-up housing, this UCT202 bearing enables easy tension adjustment, stable low-noise operation and low maintenance for light and medium-duty industrial transmission equipment.
Product Material And Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It features high hardness, excellent wear resistance and stable rotation performance for long-term continuous operation.

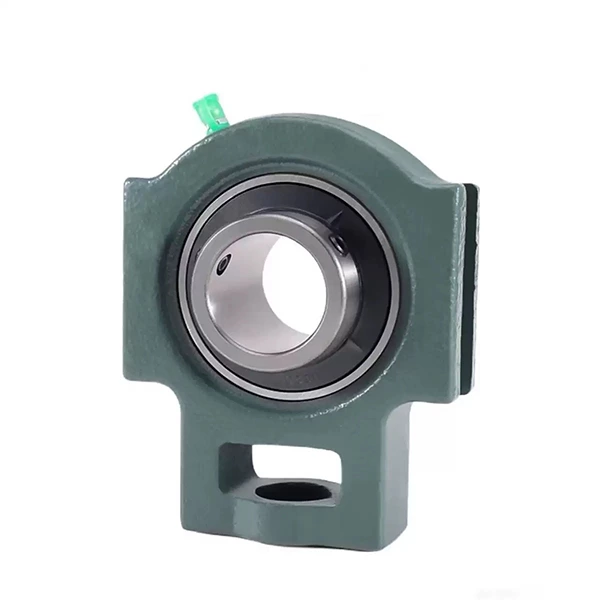

Cast Iron Housing: Standard HT200 grey cast iron take-up housing with high rigidity and structural stability. Cost-effective and shock-resistant, it is suitable for dry, indoor and ordinary industrial working environments.

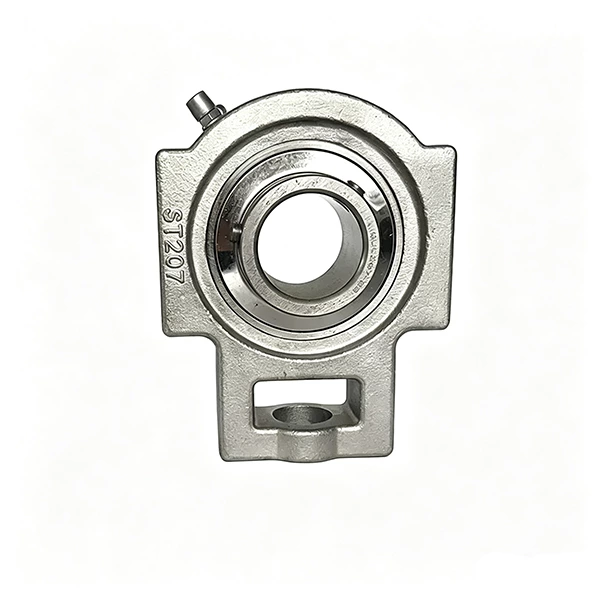

Stainless Steel Housing: Premium stainless steel take-up housing with superior rust-proof and anti-corrosion performance. It resists moisture and mild chemical corrosion, ideal for food sanitary equipment, humid workshops and outdoor industrial applications.
Core Features
Sliding take-up design allows convenient shaft tension adjustment and belt tightening. Built-in self-aligning function compensates for minor shaft misalignment. Dual set screw locking prevents shaft slipping and loosening. Compact integrated structure supports fast installation and replacement. Effective sealing reduces dust ingress and extends bearing service life.
Application Scenarios
UCT202 take-up bearings are widely applied in small conveyor systems, light textile machinery, packaging equipment and automated auxiliary transmission lines. Cast iron housing fits standard dry indoor conditions, while stainless steel housing is optimal for sanitary, humid and corrosive working scenarios.
