UCT203 Pillow Block Bearings

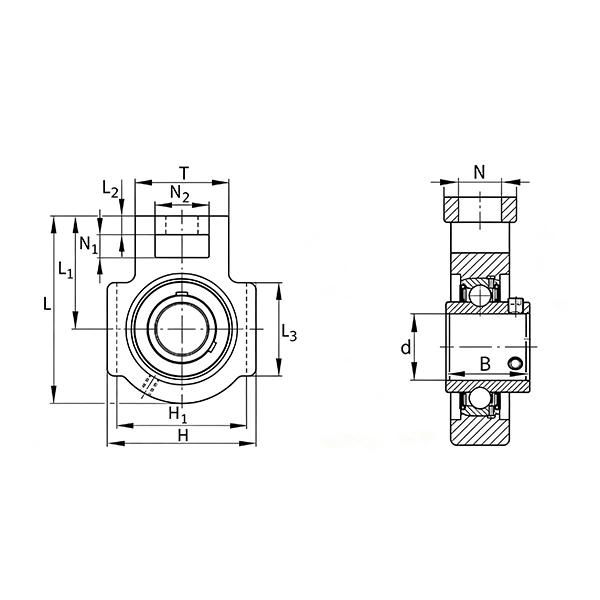

| UCT203 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCT203 | L3 | 51 |
| d | 17 | T | 32 |
| B | 31 | L2 | 10 |
| H | 89 | Install the bolt | M10 |
| L | 94 | Dynamic Load Co(N) | 12800 |
| H1 | 76 | Static Load Cor(N) | 6650 |
| N | 19 | Weight(Kg) | 0.75 |
| L1 | 61 | ||
UCT203 Take-Up Bearing | 17mm Bore Sliding Mounted Bearing
The UCT203 take-up bearing is a lightweight sliding mounted bearing unit with a 17mm bore. Equipped with a self-aligning UC insert and dual set screw locking structure, this UCT203 bearing features adjustable tension function, stable low-noise operation and low maintenance, ideal for light and medium-duty industrial transmission machinery.
Product Material And Housing Difference
Bearing Core: Manufactured from high-quality GCr15 bearing steel with professional heat treatment. It delivers high hardness, outstanding wear resistance and stable mechanical performance for long-term continuous operation.

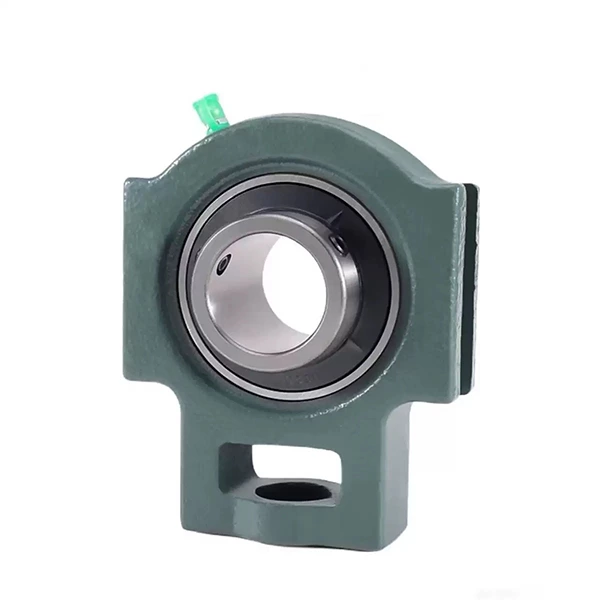

Cast Iron Housing: Standard HT200 grey cast iron housing with high rigidity and shock resistance. Cost-effective and structurally stable, it is suitable for dry, indoor and conventional standard industrial environments.

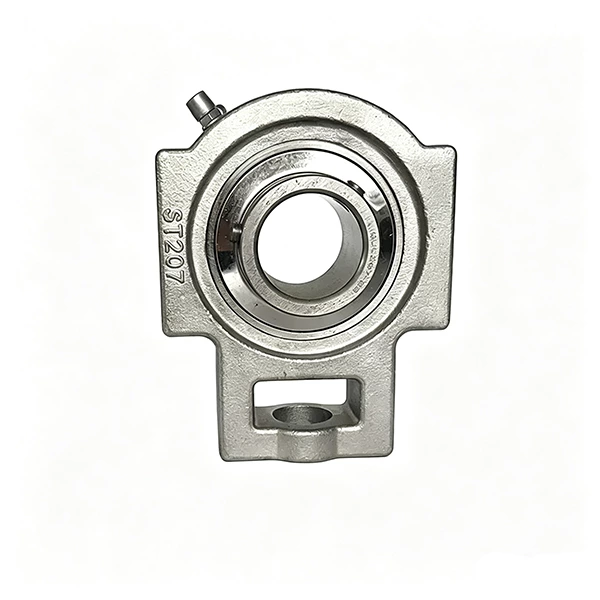

Stainless Steel Housing: Premium stainless steel housing with excellent rust-proof, anti-corrosion and moisture-resistant properties. It works reliably in humid, wet and sanitary environments, perfect for food machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Adjustable sliding take-up structure allows flexible shaft tension and belt adjustment. Built-in self-aligning design compensates for minor shaft misalignment and mounting deviation. Dual set screw locking effectively prevents shaft slipping and loosening during operation. Compact integrated structure enables fast installation and replacement. Fine sealing performance blocks dust and impurities to prolong service life.
Application Scenarios
UCT203 take-up bearings are widely used in small conveyor systems, textile machinery, packaging equipment and automated production lines. Cast iron housing adapts to standard dry indoor working conditions, while stainless steel housing is optimal for high-sanitary, humid and corrosive industrial environments.
