UCT204 Pillow Block Bearings

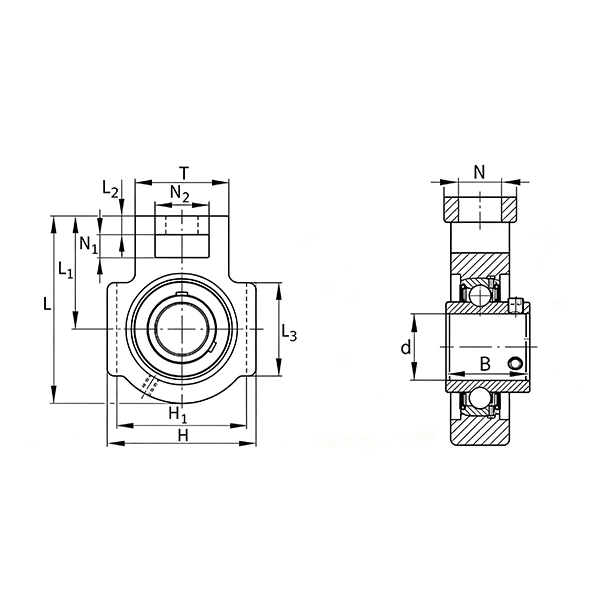

| UCT204 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCT204 | L3 | 51 |
| d | 20 | T | 32 |
| B | 31 | L2 | 10 |
| H | 89 | Install the bolt | M10 |
| L | 94 | Dynamic Load Co(N) | 12800 |
| H1 | 76 | Static Load Cor(N) | 6650 |
| N | 19 | Weight(Kg) | 0.72 |
| L1 | 61 | ||
UCT204 Take-Up Bearing | 20mm Bore Sliding Mounted Bearing
The UCT204 take-up bearing is a popular sliding adjustable mounted bearing unit with a 20mm bore. Adopting a self-aligning UC bearing insert and dual set screw locking design, this UCT204 bearing supports flexible tension adjustment, smooth low-noise operation and easy maintenance, widely used for light and medium-duty industrial transmission systems.
Product Material And Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It provides high hardness, excellent wear resistance and stable rotation performance for long-term continuous mechanical operation.

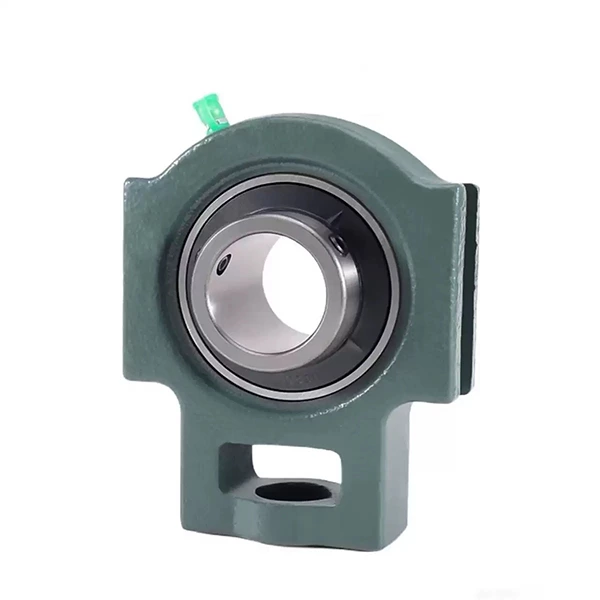

Cast Iron Housing: Standard HT200 grey cast iron take-up housing with high rigidity and strong shock resistance. Cost-effective and durable, it is suitable for dry, indoor and conventional industrial working environments.

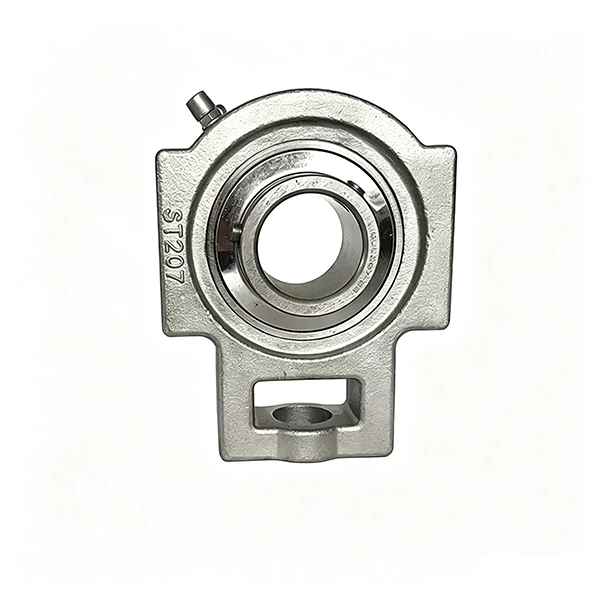

Stainless Steel Housing: High-grade stainless steel housing with superior rust-proof, anti-corrosion and moisture-resistant capabilities. It performs steadily in humid, wet and sanitary conditions, ideal for food processing machinery, outdoor equipment and mild corrosive industrial scenarios.
Core Features
Sliding adjustable structure enables convenient belt and shaft tension calibration. Built-in self-aligning function compensates for minor installation errors and shaft misalignment. Dual set screw locking avoids shaft slipping and loosening during operation. Compact integrated design allows quick installation and replacement. Reliable sealing structure prevents dust and moisture intrusion to extend service life.
Application Scenarios
UCT204 take-up bearings are commonly applied in conveyor systems, textile machinery, packaging equipment and automated production lines. Cast iron housing fits standard dry indoor working conditions, while stainless steel housing is the best choice for high-sanitary, humid and corrosive industrial environments.
