UCT205 Pillow Block Bearings
| UCT205 Pillow Block Bearings | |||
|---|---|---|---|

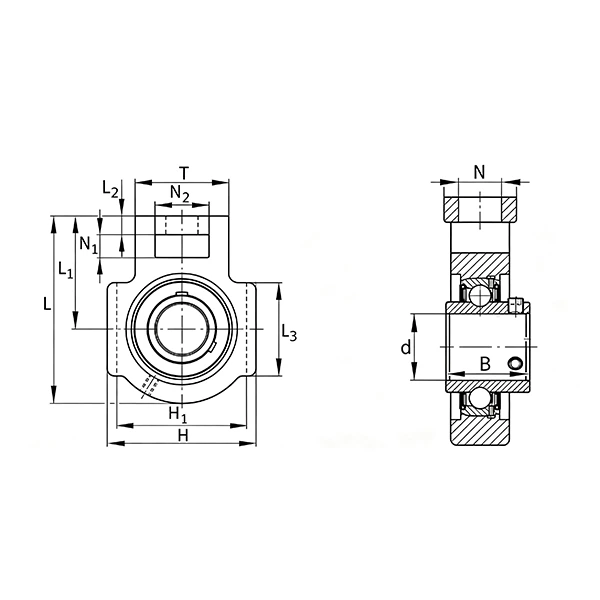

| Part Number | UCT205 | L3 | 51 |
| d | 20 | T | 32 |
| B | 34.1 | L2 | 10 |
| H | 97 | Install the bolt | M10 |
| L | 94 | Dynamic Load Co(N) | 14000 |
| H1 | 76 | Static Load Cor(N) | 7800 |
| N | 19 | Weight(Kg) | 0.8 |
| L1 | 62 | ||
UCT205 Take-Up Bearing | 25mm Bore Sliding Mounted Bearing
The UCT205 take-up bearing is an adjustable sliding mounted bearing unit featuring a 25mm bore. Built with a self-aligning UC insert and dual set screw locking mechanism, this UCT205 bearing delivers flexible tension adjustment, quiet stable operation and low maintenance, suited for light and medium-duty industrial transmission machinery.
Product Material And Housing Difference
Bearing Core: Constructed from high-quality GCr15 bearing steel with precision heat treatment. It ensures high hardness, exceptional wear resistance and stable performance for long-term continuous operation.

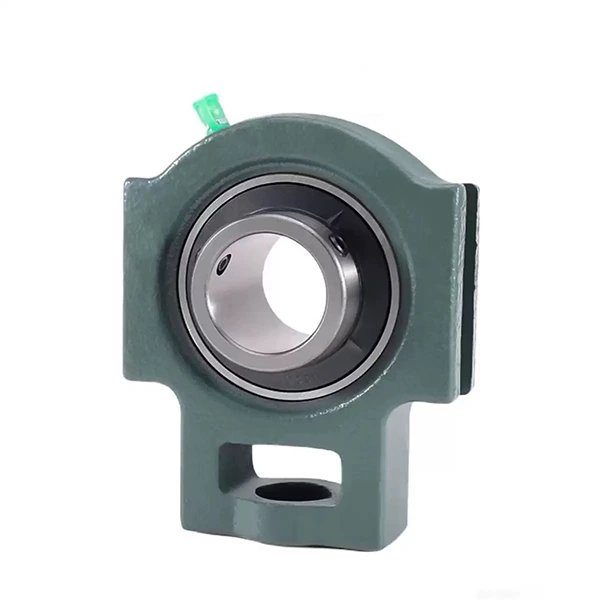

Cast Iron Housing: Standard HT200 grey cast iron housing with high rigidity and strong shock resistance. Cost-effective and sturdy, it works perfectly in dry, indoor and conventional standard industrial environments.

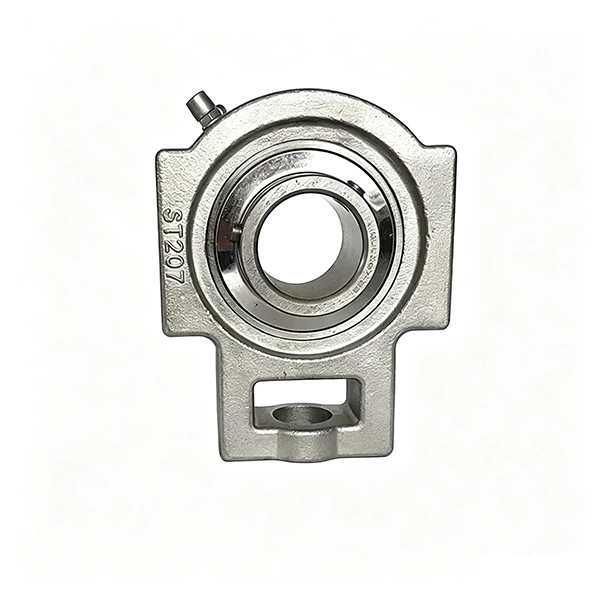

Stainless Steel Housing: Premium stainless steel housing with excellent rust-proof, anti-corrosion and moisture-resistant properties. It adapts to humid, wet and sanitary working conditions, ideal for food machinery, outdoor equipment and mildly corrosive industrial applications.
Core Features
Sliding take-up structure allows easy shaft and belt tension adjustment. Built-in self-aligning design compensates for minor shaft misalignment and mounting deviation. Dual set screw locking prevents shaft slipping and loosening during continuous operation. Compact integrated design supports fast installation and replacement. Effective sealing blocks dust and moisture to extend bearing service life.
Application Scenarios
UCT205 take-up bearings are widely used in conveyor systems, textile machinery, industrial packaging equipment and automated production lines. Cast iron housing is suitable for standard dry indoor conditions, while stainless steel housing is optimal for high-sanitary, humid and corrosive industrial environments.
