UCT206 Pillow Block Bearings

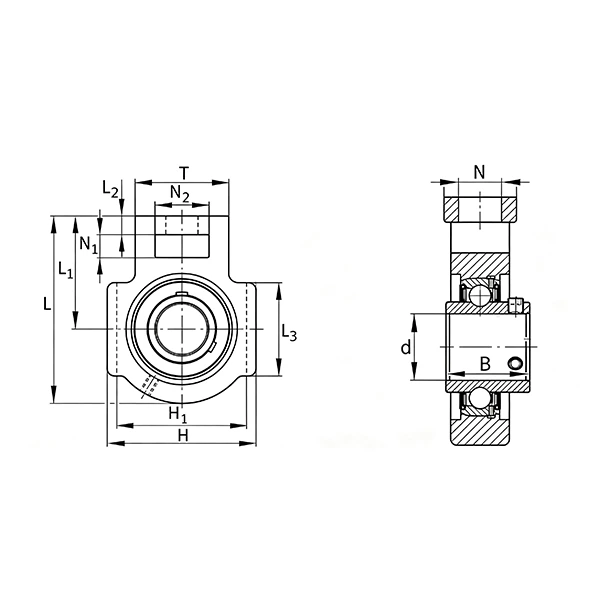

| UCT206 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCT206 | L3 | 56 |
| d | 30 | T | 37 |
| B | 38.1 | L2 | 10 |
| H | 102 | Install the bolt | M10 |
| L | 113 | Dynamic Load Co(N) | 19500 |
| H1 | 89 | Static Load Cor(N) | 11500 |
| N | 22 | Weight(Kg) | 1.26 |
| L1 | 70 | ||
UCT206 Take-Up Bearing | 30mm Bore Sliding Mounted Bearing
The UCT206 take-up bearing is an adjustable sliding mounted bearing unit with a 30mm bore. Featuring a self-aligning UC insert and dual set screw locking structure, this UCT206 bearing supports flexible tension adjustment, stable low-noise operation and low maintenance, ideal for light and medium-duty industrial transmission machinery.
Product Material And Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It offers high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation.

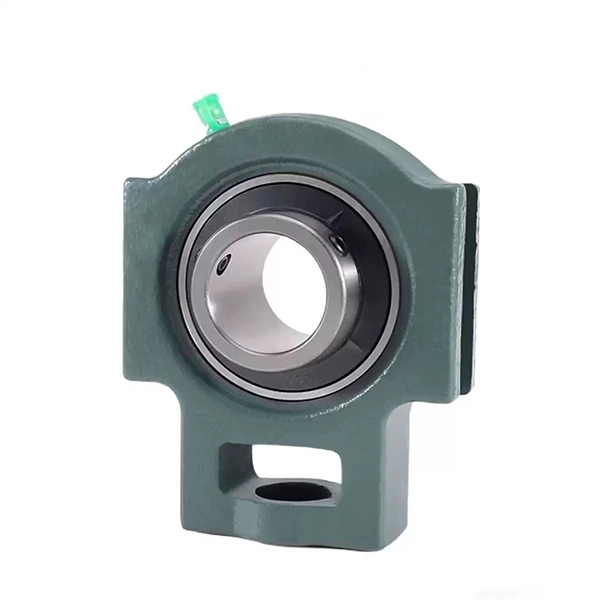

Cast Iron Housing: Standard HT200 grey cast iron housing with high rigidity and strong shock resistance. Cost-effective and durable, it fits dry, indoor and conventional standard industrial working environments.

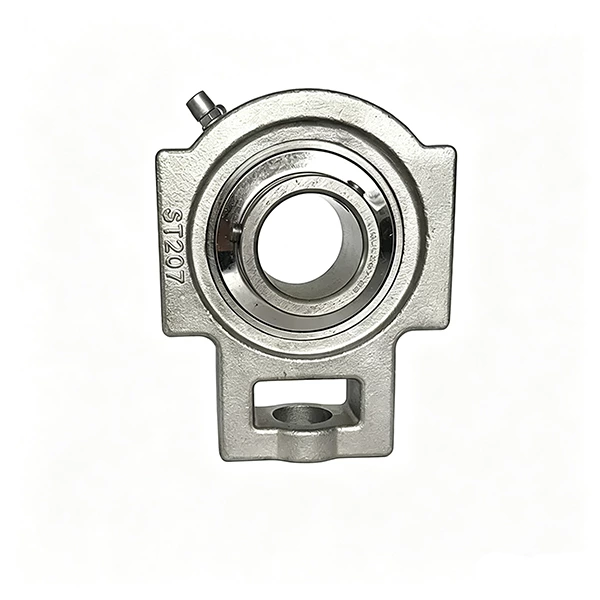

Stainless Steel Housing: Premium stainless steel housing with superior rust-proof, anti-corrosion and moisture-resistant properties. It performs reliably in humid, wet and sanitary conditions, perfect for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Sliding take-up structure enables convenient shaft and belt tension adjustment. Built-in self-aligning function compensates for minor shaft misalignment and mounting deviation. Dual set screw locking effectively prevents shaft slipping and loosening during continuous operation. Compact integrated design allows quick installation and replacement. Reliable sealing blocks dust and moisture to extend bearing service life.
Application Scenarios
UCT206 take-up bearings are widely applied in conveyor systems, textile machinery, packaging equipment and automated production lines. Cast iron housing adapts to standard dry indoor working conditions, while stainless steel housing is optimal for high-sanitary, humid and corrosive industrial environments.
