UCT207 Pillow Block Bearings

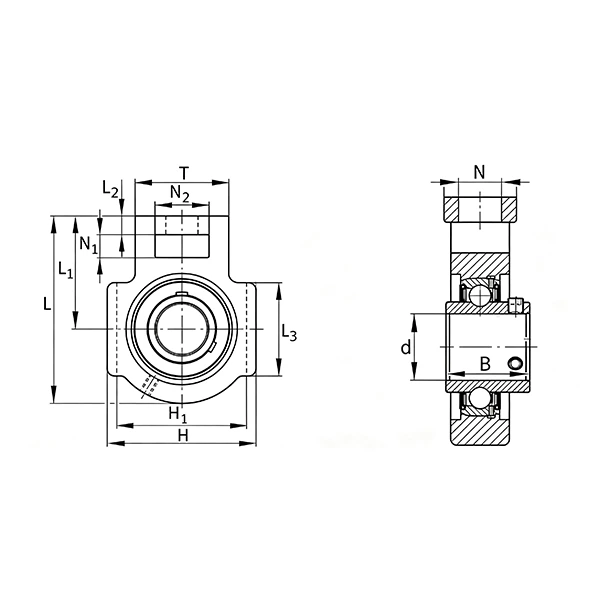

| UCT207 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCT207 | L3 | 64 |
| d | 35 | T | 37 |
| B | 42.9 | L2 | 13 |
| H | 102 | Install the bolt | M12 |
| L | 129 | Dynamic Load Co(N) | 25500 |
| H1 | 89 | Static Load Cor(N) | 15300 |
| N | 22 | Weight(Kg) | 1.68 |
| L1 | 78 | ||
UCT207 Take-Up Bearing | 35mm Bore Sliding Mounted Bearing
The UCT207 take-up bearing is an adjustable sliding mounted bearing unit with a 35mm bore. Equipped with a self-aligning UC insert and dual set screw locking structure, this UCT207 bearing delivers flexible tension adjustment, stable low-noise operation and low maintenance, suitable for light and medium-duty industrial transmission machinery.
Product Material And Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It provides high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation.

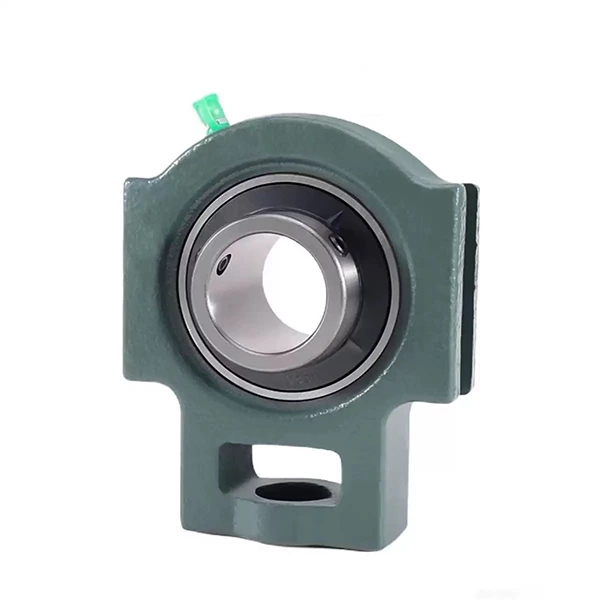

Cast Iron Housing: Standard HT200 grey cast iron housing features high rigidity and strong shock resistance. Cost-effective and sturdy, it is ideal for dry, indoor and conventional standard industrial working environments.

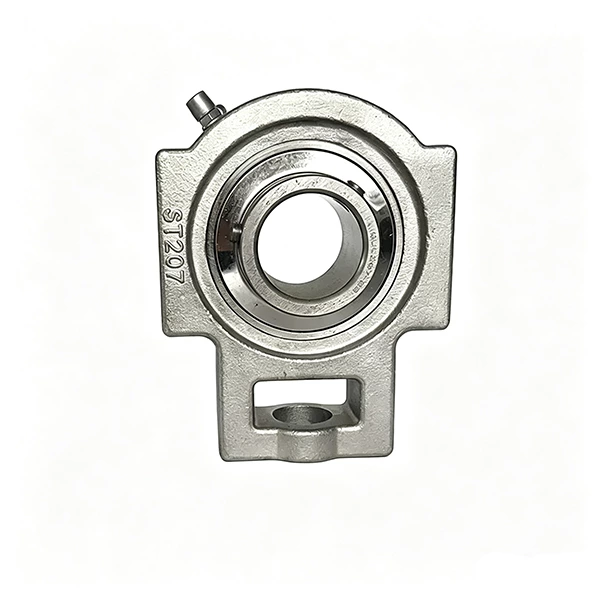

Stainless Steel Housing: Premium stainless steel housing with outstanding rust-proof, anti-corrosion and moisture-resistant properties. It works steadily in humid, wet and sanitary conditions, perfect for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Sliding take-up structure allows easy shaft and belt tension adjustment. Built-in self-aligning design compensates for minor shaft misalignment and mounting deviation. Dual set screw locking effectively prevents shaft slipping and loosening during continuous operation. Compact integrated design supports fast installation and replacement. Reliable sealing blocks dust and moisture to extend bearing service life.
Application Scenarios
UCT207 take-up bearings are widely used in conveyor systems, textile machinery, packaging equipment and automated production lines. Cast iron housing adapts to standard dry indoor working conditions, while stainless steel housing is optimal for high-sanitary, humid and corrosive industrial environments.
