UCT210 Pillow Block Bearings

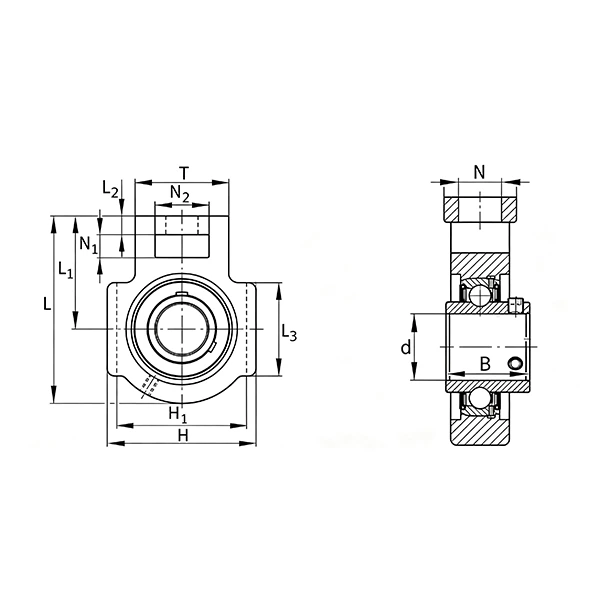

| UCT210 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCT210 | L3 | 83 |
| d | 50 | T | 49 |
| B | 51.6 | L2 | 16 |
| H | 117 | Install the bolt | M14 |
| L | 149 | Dynamic Load Co(N) | 35100 |
| H1 | 102 | Static Load Cor(N) | 23200 |
| N | 29 | Weight(Kg) | 2.75 |
| L1 | 90 | ||
UCT210 Take-Up Bearing | 50mm Bore Sliding Mounted Bearing
The UCT210 take-up bearing is an adjustable sliding mounted bearing unit with a 50mm bore. Built with a self-aligning UC insert and dual set screw locking structure, this UCT210 bearing ensures flexible tension adjustment, stable low-noise operation and minimal maintenance, ideal for light and medium-duty industrial transmission machinery.
Product Material And Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It features high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation.

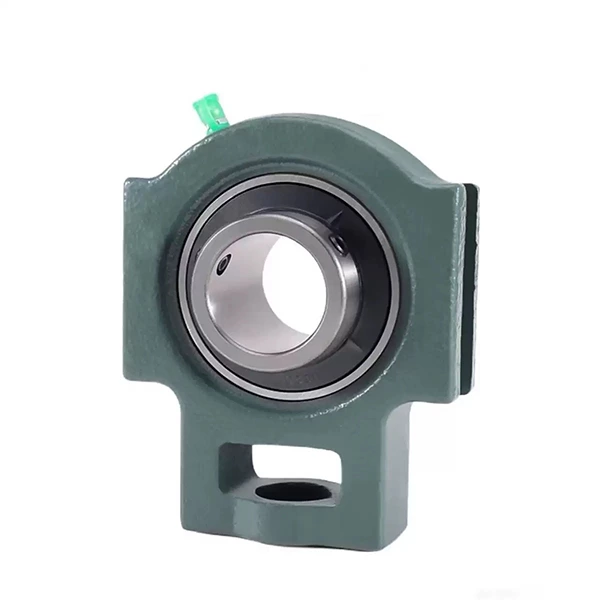

Cast Iron Housing: Standard HT200 grey cast iron housing with high rigidity and strong shock resistance. Cost-effective and sturdy, it is suitable for dry, indoor and conventional standard industrial working environments.

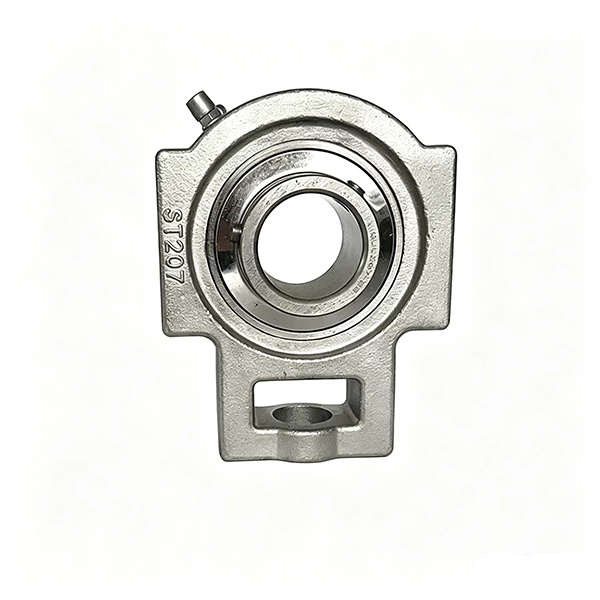

Stainless Steel Housing: Premium stainless steel housing delivers outstanding rust-proof, anti-corrosion and moisture-resistant performance. It operates reliably in humid, wet and sanitary conditions, perfect for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Sliding take-up structure allows easy shaft and belt tension adjustment. Built-in self-aligning design compensates for minor shaft misalignment and mounting deviation. Dual set screw locking effectively prevents shaft slipping and loosening during continuous operation. Compact integrated design supports fast installation and replacement. Reliable sealing blocks dust and moisture to extend bearing service life.
Application Scenarios
UCT210 take-up bearings are widely used in conveyor systems, textile machinery, packaging equipment and automated production lines. Cast iron housing adapts to standard dry indoor working conditions, while stainless steel housing is optimal for high-sanitary, humid and corrosive industrial environments.
