UCT218 Pillow Block Bearings

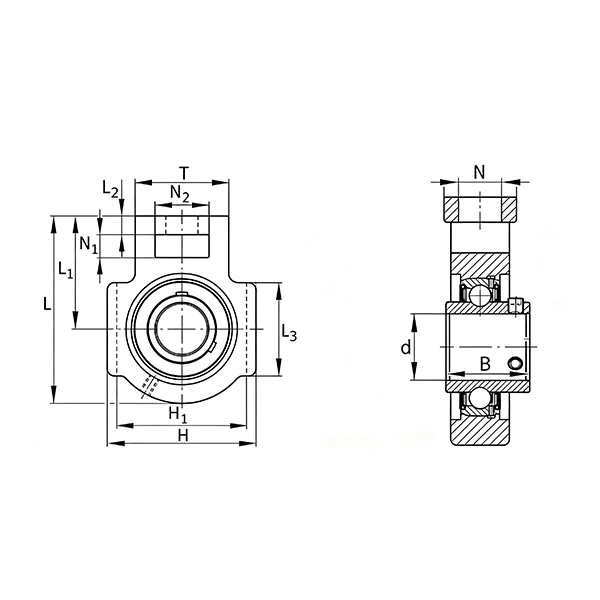

| UCT218 Pillow Block Bearings | |||
|---|---|---|---|
| Part Number | UCT218 | L3 | 130 |
| d | 90 | T | 80 |
| B | 96 | L2 | 30 |
| H | 215 | Install the bolt | M20 |
| L | 275 | Dynamic Load Co(N) | 96100 |
| H1 | 190 | Static Load Cor(N) | 71500 |
| N | 48 | Weight(Kg) | 12.3 |
| L1 | 170 | ||
UCT218 Take-Up Bearing | 90mm Bore Sliding Mounted Bearing
The UCT218 take-up bearing is an adjustable sliding mounted bearing unit with a 90mm bore. Equipped with a self-aligning UC insert and dual set screw locking structure, this UCT218 bearing offers flexible tension adjustment, stable low-noise operation and low maintenance, suitable for light and medium-duty industrial transmission machinery.
Product Material And Housing Difference
Bearing Core: Made of high-quality GCr15 bearing steel with precision heat treatment. It delivers high hardness, excellent wear resistance and stable mechanical performance for long-term continuous operation.

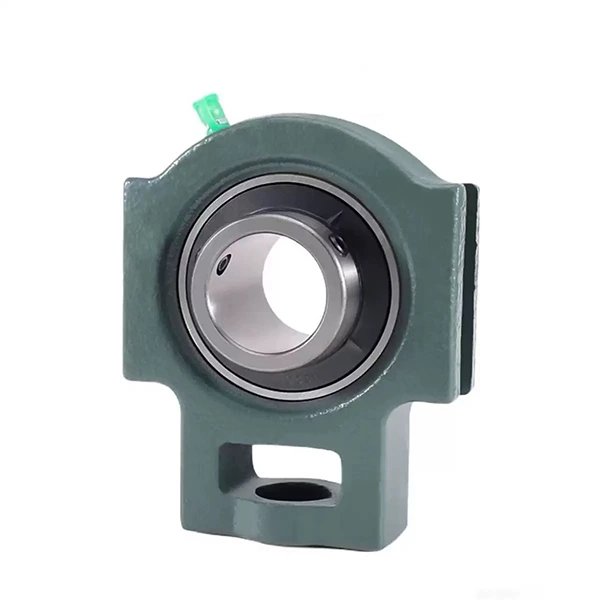

Cast Iron Housing: Standard HT200 grey cast iron housing with high rigidity and strong shock resistance. Cost-effective and durable, it suits dry, indoor and conventional standard industrial working environments.

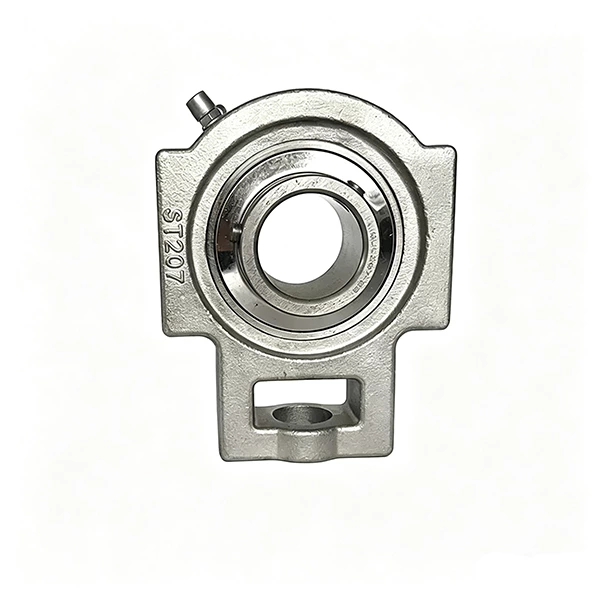

Stainless Steel Housing: Premium stainless steel housing with superior rust-proof, anti-corrosion and moisture-resistant properties. It performs reliably in humid, wet and sanitary working conditions, perfect for food processing machinery, outdoor equipment and mildly corrosive industrial scenarios.
Core Features
Sliding take-up structure enables convenient shaft and belt tension adjustment. Built-in self-aligning design compensates for minor shaft misalignment and mounting deviation. Dual set screw locking effectively prevents shaft slipping and loosening during continuous operation. Compact integrated design supports fast installation and replacement. Reliable sealing blocks dust and moisture to extend bearing service life.
Application Scenarios
UCT218 take-up bearings are widely applied in conveyor systems, textile machinery, packaging equipment and automated production lines. Cast iron housing adapts to standard dry indoor working conditions, while stainless steel housing is optimal for high-sanitary, humid and corrosive industrial environments.
